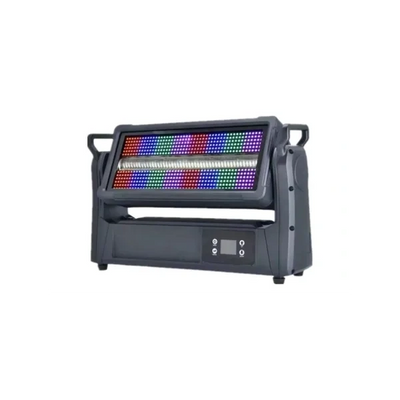

Dorado 800 IP

Optical system:

• Light Source: 504 X 0.5W RGB LED  &  96X5W CW LED
• Colour light beam angle: 101 °
• White light beam angle: 108 °
• Colour light spot angle: 149 °
• White light spot angle: 152 °

      Specifications:

• Control: DMX512,master-slave,Auto
• Tilt rotating: 0-210 °
• IP Rating: IP65
• Strobe frequency: 1-25Hz
• DMX channel: 7/20/100/83CH
• Weight: 12.5kg
• Dimension: 196x515x270mm

       Electrical Specification:

• Voltage: AC100-240VAC, 50Hz-60Hz
• Power Consumption: 800W
