nouvoled magic pixel tube

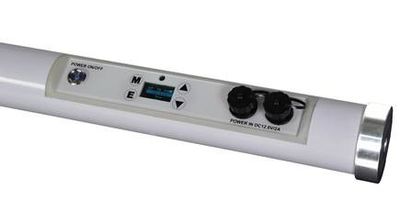

RGBW Full Colour Wireless LED Magic Pixel Tube
- Built in Lithium battery
- Built in DMX signal wireless module
- Built in WIFI receiving module
- With music control function
- Overheating protection function
- IR infrared remote control panel
- Touch button and LCD panel
- Built in 68 kinds of auto effect
technical parameters
Lithium battery
- Charging voltage: DC12.6V/2A
- Battery Specification: 21700 4.2V/4.5Ah*12cells (12.6V/18Ah)
- Charge time: 8~10hours
- Circulation Life: Not less than 300 times
- Run time of battery: Max. 20h
LED
- LED Type: 288pcsx0.3Watts RGBW 4in1 full colour LED
- Control Pixel: 32 Pixels
- Rated Power: 50W
- Colour: 16.7 million colour (0-100% saturation dimming)
- Life: 50000 hours
Control
- Control Protocol: International standard DMX-512 signal
- Channel Protocol: 7 kinds of control channel mode. (2CH;4CH;6CH;11CH;32CH - 8 pixels; 64CH - 16 pixels; 128CH - 32Pixels,
- Control mode: DMX512, auto, master slave, infrared remote control, wireless DMX-512, Mobile App Wifi control
- Wireless Protocol: W-DMX
Wireless DMX Specs
- 2.4G Communication Distance: 200M
- Wifi Communication Distance: 30M
- Band: 2.4G
- Maximum Transmit Power: 20dBm
- Receiver Sensitivity: -94dBm
Optical System
- Dimmer: From 0~100 linear dimming
- Flashing Rate: 1~20Hz
- Beam Angle: 180º
Physical
- Dimensions: 52x1190mm
- Weight: 1.72kg
Security
- Cooling System: Convection
- Waterproof Rate: IP65
- Temperature Protection: 60ºC
- Operating Environment: Indoor/Outdoor
